ER-MA-02 Features:
1. Ruggedized Housing, Easy to Install;
2. High Phase Center Stability;
3. Tracking in Challenging Environments.

Universal Measuring Antenna

Universal Measuring Antenna

Get Price Now



    Share to:

    Introduction

    ER-MA-02 Universal Measuring Antenna

    Introduction

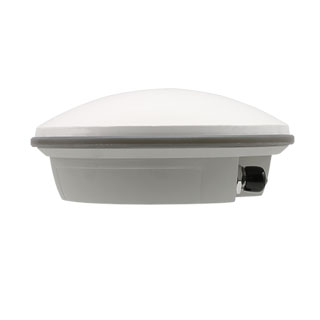

    ER-MA-02 Universal Measuring Antenna is a high performance survey GNSS antenna which offers superior satellite signal tracking, including BeiDou, GPS, GLONASS and GALILEO. It meets the requirements of high precision and multi-constellation compatibility. It enables easy and flexible installations (magnetic mount, screws mount and pole mount) for many high-precision applications.

    Features

    Ruggedized Housing, Easy to Install: It is designed with brand new structure, enabling easy and flexible installations (magnetic mount, screws mount and pole mount) for many high-precision applications.

    High Phase Center Stability: features a multi-point feeding deign to achieve greater phase center stability. It effectively improves measurement accuracy and provides better positioning solutions.

    Tracking in Challenging Environments: The ability to receive low elevation signals with high gain and wide beam width makes ER-MA-02 an excellent choice for tracking visible satellites under challenging conditions.

    Strong Anti-interference Performance: The antenna LNA features an excellent out-of-band rejection performance, which can suppress the electromagnetic interference, providing the stability and reliability of GNSS signals.

    Specifications

    Performance
    Signal Received GPS L1/L2/L5/L-Band
    GLONASS L1/L2/L3
    GALILEO E1/E5a/E5b/E6
    BDS B1I/B2I/B3I/B1C/B2A/B2B, QZSS, L1/L2/L5/L6
    IRNSS L5, SBAS L1/L5
    Nominal Impedance 50Ω
    Polarization RHCP
    Axial Ratio ≤3dB
    Azimuth Coverage 360°
    Output VSWR ≤2.0
    Gain at Zenith 5.5dBi
    Phase Center Error ±2mm
    LNA
    LNA Gain L2: 40±2dB, L1: 38±2dB
    Noise Figure ≤2dB
    Output VSWR ≤2.0
    Passband Ripple ±2dB
    Operation Voltage +3.3 to +12VDC
    Operation Current ≤45mA
    Group Delay Ripple <5ns
    Mechanical
    Dimensions Φ152*57.7mm
    Connector TNC-K
    Weight ≤700g
    Mounting Magnetic mount
    3 x M5 screws mount
    BSW5/8''-11 screw, 12-14mm
    Environmental
    Operating Temperature -40℃ to +85℃
    Storage Temperature -55℃ to +85℃
    Humidity 95% non-condensing
    Shock MIL-STD-810-F to survive a 2m (6.56 ft) drop onto concrete
    Vibration MIL-STD-810-F on each axis
    Water/Dust Resistance IP67
    EMC (RF Input Static) Connected 8KV, Air: 15KV, 10 times
    Regulatory Compliance CE, FCC, RoHS
