ER-QA-03C:
1. Bias repeatability: 15-80μg;
2. Scale factor repeatability: 15-80ppm;
3. Class II non-linearity repeatability: 20-50μg/g².

Small Size Quartz Accelerometer For Aerospace

Small Size Quartz Accelerometer For Aerospace

Get Price Now



    Share to:

    Introduction

    ER-QA-03C Small Size Quartz Accelerometer For Aerospace

    Introduction
    ER-QA-03C Small Size Quartz Accelerometer for aerospace is a smaller volume quartz accelerometer, not only it can be used in aviation and aerospace inertial tests but also can be used in both static and dynamic acceleration measurements. In addition, the accelerometer uses a temperature sensor, which the operator can use to compensate bias and scale factor parameters to reduce the influence of temperature factors.

    Applications in inertial navigation and guidance systems
    Aircraft, ships, combat vehicles and other navigation and guidance systems must have speed and position information, in the occasion of low requirements, people use air speedometer, Mach number sensor, odometer, etc. But with the improvement of the performance requirements of systems, the above instruments can not meet the requirements. The linear accelerometer can be installed in the moving object to directly measure its acceleration, and then get the speed and position, the measurement accuracy is high, the dynamic performance is good, far better than the air speedometer, odometer. Therefore, linear accelerometer is one of the most important applications in inertial navigation guidance system.

    Specifications

    Parameters ER-QA-03C1 ER-QA-03C2 ER-QA-03C3
    Range ±60g ±60g ±60g
    Threshold /Resolution 10μg 10μg 10μg
    Bias ≤±5 mg ≤±5 mg ≤±5 mg
    Scale factor 1.0±0.2 mA/g 1.0±0.2 mA/g 1.0±0.2 mA/g
    Class II non-linearity ≤±20μg /g2 ≤±30μg /g2 ≤±50μg /g2
    0g 4 hours short time stability ≤10 μg ≤20 μg ≤20 μg
    1g 4 hours short time stability ≤10 μg ≤20 μg ≤20 μg
    Bias repeatability ≤15 μg ≤50 μg ≤80 μg
    Scale factor repeatability ≤15ppm ≤50 ppm ≤80ppm
    Class II non-linearity repeatability ≤±20 μg /g2 ≤±30 μg /g2 ≤±50 μg /g2
    Bias temp coefficient ≤±15 μg /℃ ≤±50 μg /℃ ≤±80 μg /℃
    Scale factor temp coefficient ≤±15 ppm /℃ ≤±80 ppm /℃ ≤±100 ppm /℃
    Noise ≤5mv ≤8.4mv ≤8.4mv
    Natural Frequency 350~800 Hz 350~800 Hz 350~800 Hz
    Bandwidth 800~2500 Hz 800~2500 Hz 800~2500 Hz
    Vibration 10g(20-2000Hz) 10g(20-2000Hz) 10g(20-2000Hz)
    Shock 150g, 0.5ms, 1/2sin
    Operating temperature -40~+80℃ -40~+80℃ -40~+80℃
    Storage temperature -60~+120℃ -60~+120℃ 60~+120℃
    Power ±12~±15V ±12~±15V ±12~±15V
    Consume current ≤±20mA ≤±20mA ≤±20mA
    Size Ф18.2X23mm Ф18.2X23mm Ф18.2X23mm
    Weight ≤30g ≤30g ≤30g

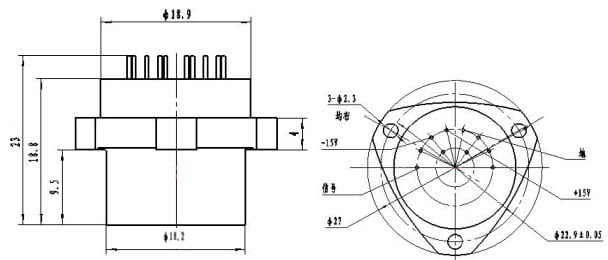

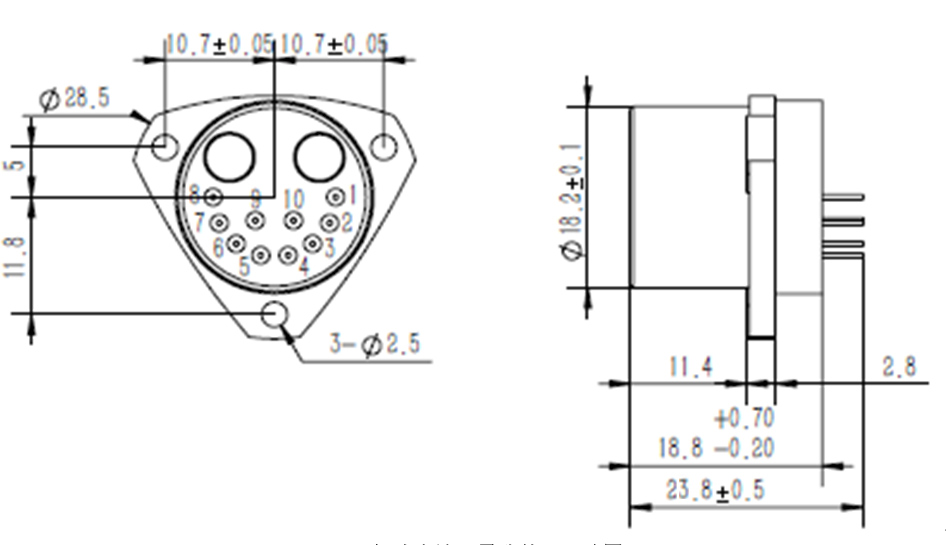

    Install dimension

    Small Size Quartz Accelerometer For Aerospace Install dimension
